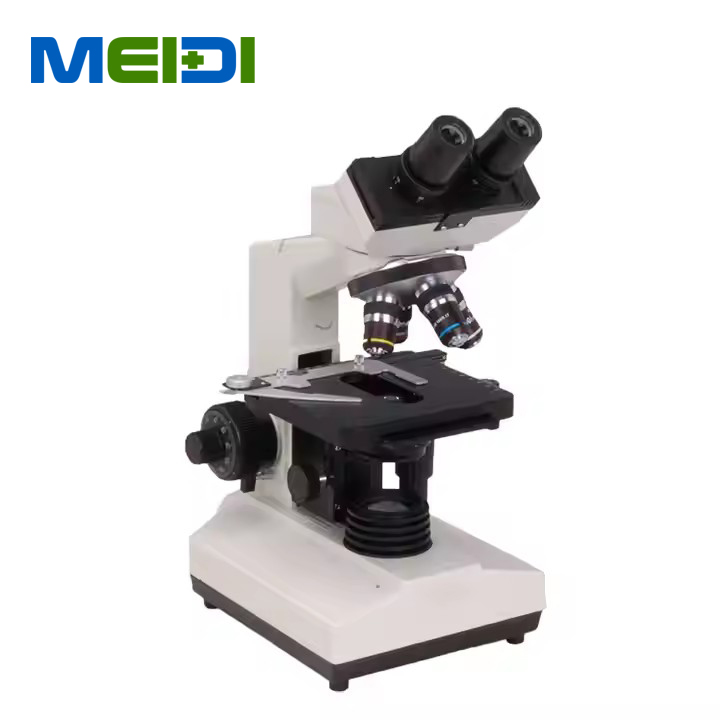

Laboratory Microscope

Specifications

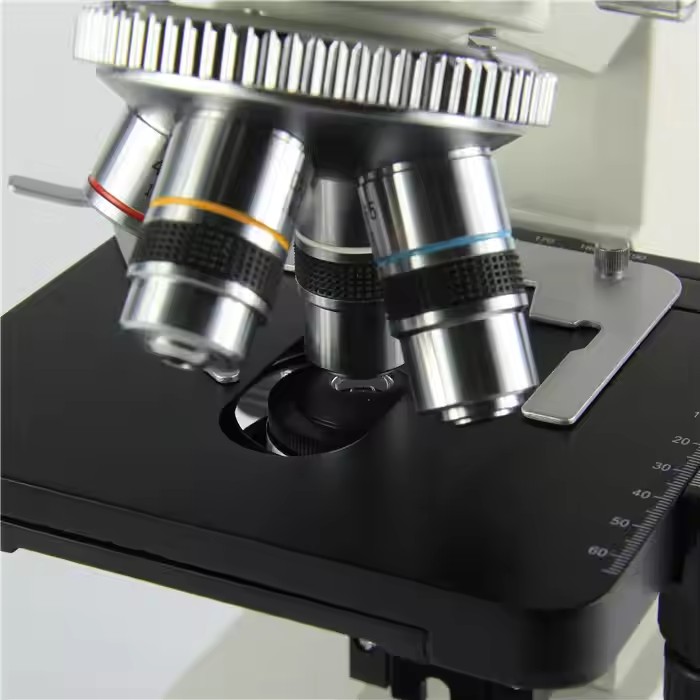

1. 45mm DIN achromatic objective:4x,10x,40x(s),100x(s,oil)

2. wide field plane-scope eyepiece:WF10X,WF16X;

3. Total magnification:40x-1600x;

4. sliding trinocular head,interpupillary distance:55-75mm;45°inclined,360°rotatable;

5. double layer mechanical stage:140mmx155mm,muving range X-Y:70x50mm;

    dia2-30mm iris diaphragm and dia32 filter;  ABBE condensor:N.A. 1.25;

6. Coaxial coarse and fine focusing adjustable mechanism:25mm,precision:0.002mm;

    built-in adjustable brightness halogen lamp 6V/20W

Features

Binocular stereo a stered microscope with high quality optical system and durable and reliable operating mechanism, a new design to show the best resolution and true color image, meet the modern biological medicine, scientific research, modern electronic online testing and other technology industries such as high precision requirements. A stereoscopic microscope can produce a positive three-dimensional image of an object. The stereo feeling is strong, the image is clear and wide, and has long working distance, and it is a conventional microscope with a wide range of application.

Details
