Twelve Channel EcG Machine(E12)

Get Latest Price

Contact Now

Model No.: Twelve Channel EcG Machine(E12)

Standard: 12-Leads

Description

Product Description

Product Description

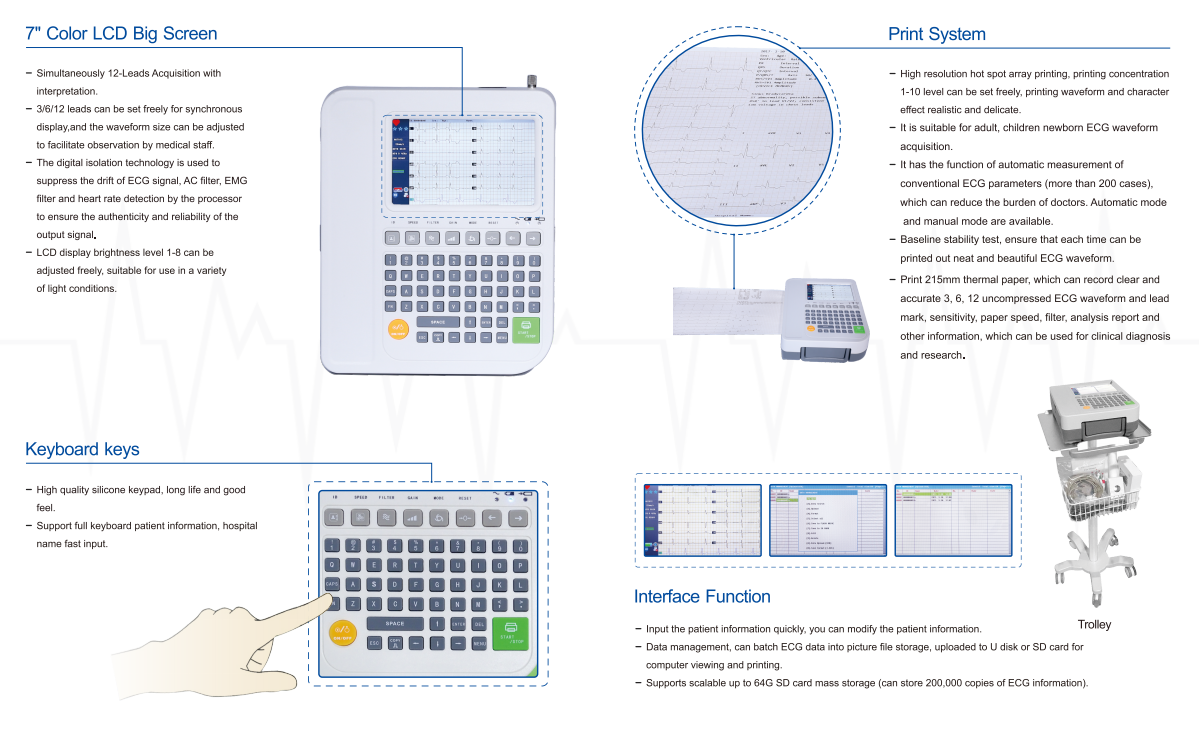

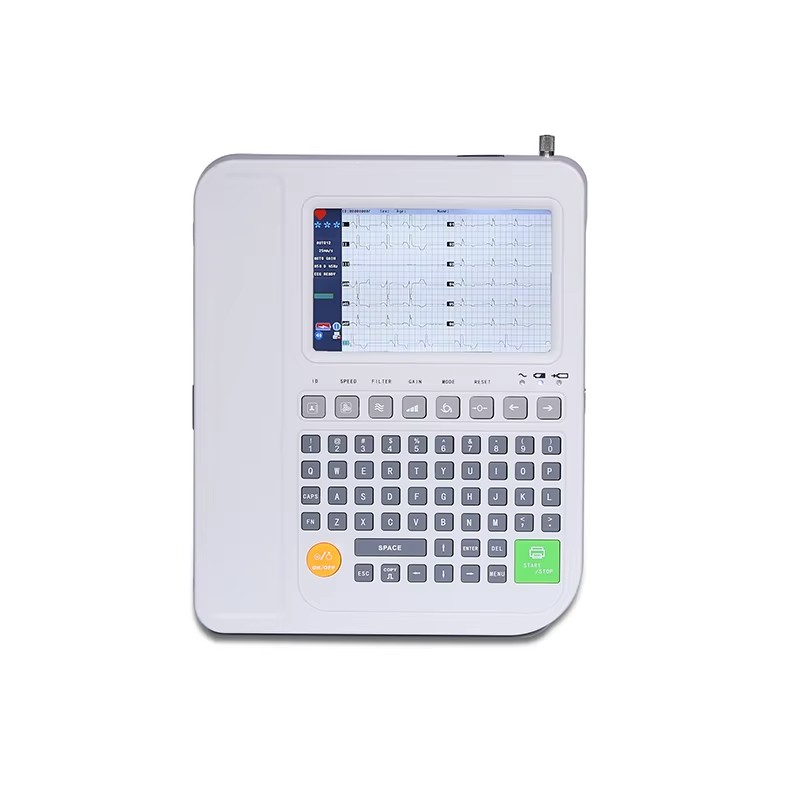

12-channel ECG machine

1. 7” Color LCD Big Screen.

2. LED display brightness level 1-8 can be adjusted freely, suitable for use in a variety of light conditions.

3. Simultaneously 12-Leads Acquisition with interpretation.

4. Manual/auto working modes

5. 3/6/12 leads can be set freely for synchronous display, and the waveform size can be adjusted to facilitate observation by medical staff.

6. The digital isolation technology is used to suppress the drift of ECG signal, AC filter, EMG filter and heart rate detection by the processor to

ensure the authenticity and reliability of the output signal.

Product Details

Silicone button

1. High quality silicone keypad, long life and good feel.

2. Support full keyboard patient information, hospital name fast input.

Print system

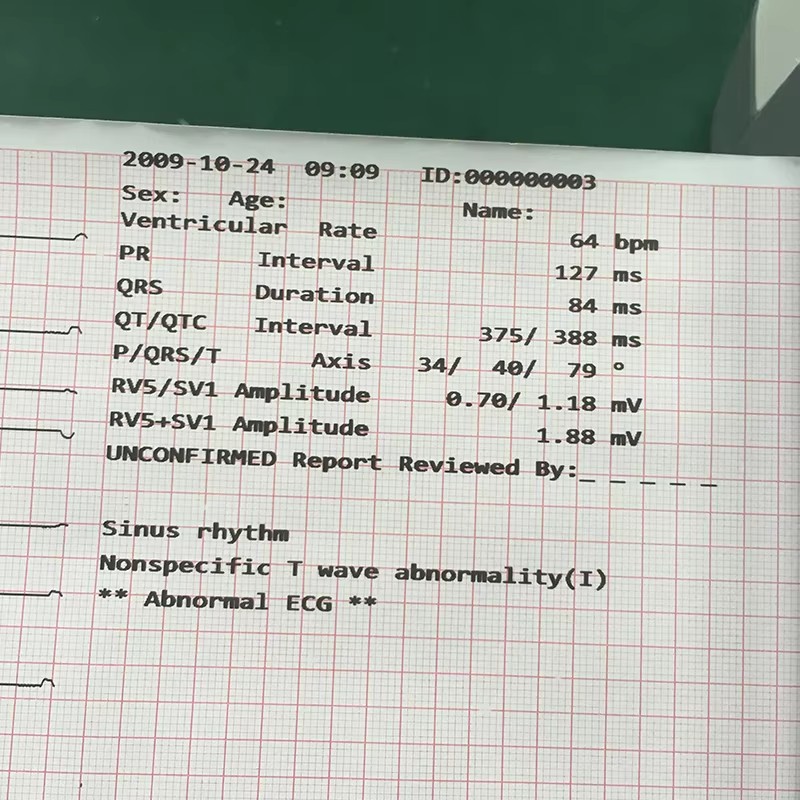

1. It has the function of automatic measurement of conventional ECG parameters (more than 200 cases)

2. It is suitable for adult, children newborn ECG waveform acquisition

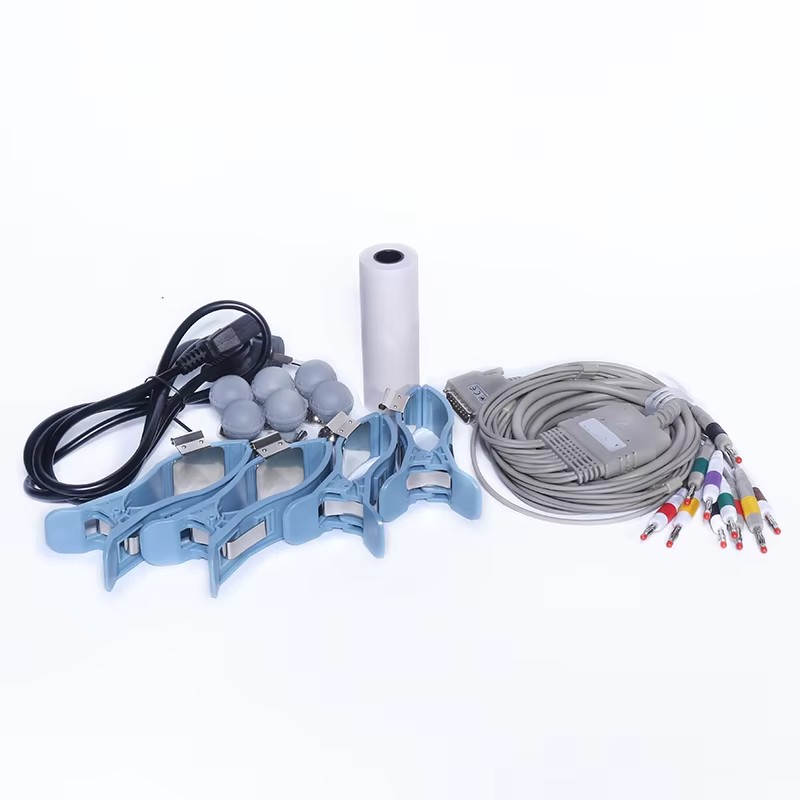

Accessories

1.Limb electrode (4 pieces)

2.Chest electrode (6 pieces)
3.Patient cable (1 piece)

4.Electrode cream/gel (1 bottle)

Interface Function

1.Input the patient information quickly, you can modify the patient information
2. Data management, can batch ECG data into picture file storage, uploaded to U disk or SD card for computer viewing and printing
3. Supports scalable up to 64G SD card mass storage (can store 200,000 copies of ECG information)

Product Specification

Product name	12 channel ECG machine
Power source	Electricity
Power source	Electricity
Instrument classification	Class II
Screen	7 inches TFT color screen
NW	3KG
GW	5.1KG
Resolution	800*480 points
A/D converter	14 bits
Sampling mode	Simultaneous 12 leads acquisition
Sampling Rate	1 ms
Recording mode	Thermal printing system
Paper specification	Roll: 215mm(W)*25m(L)
Paper speed	5, 6.25, 10, 12.5, 25, 50mm/s ±2%
Print selection	3 channels, 6 channels, 12 channels and according to user configuration
Recording format	3x4, 6x2, 12x1, 12x1+T
CMRR	More than 105 dB
Polarization Voltage	>500mV
Calibration voltage	˃±5mV
Patient leakage current	<10µA
Time constant	>3.2 s
Frequency response	0.05-150 Hz (-3dB)
Input Impedance	>=50MΩ(10Hz)
Noise level	<15uV(pp)
Filter	Built-in filters: AC (50/60Hz, off) EMG filter: (25Hz/35Hz/45Hz, off) Drift filter: (0.05, 0.1, 0.2 Hz, 0.50Hz) Low pass filter: (off, 75Hz, 100Hz, 150Hz )
Interference between channels	≤ 0.5mm
Stroage	U disk (20 can be stored ECG machine)
Pacemaker detection	>122 arrhythmia cases
Presentation of patient data	ID, Name, Age, gender, hospital name

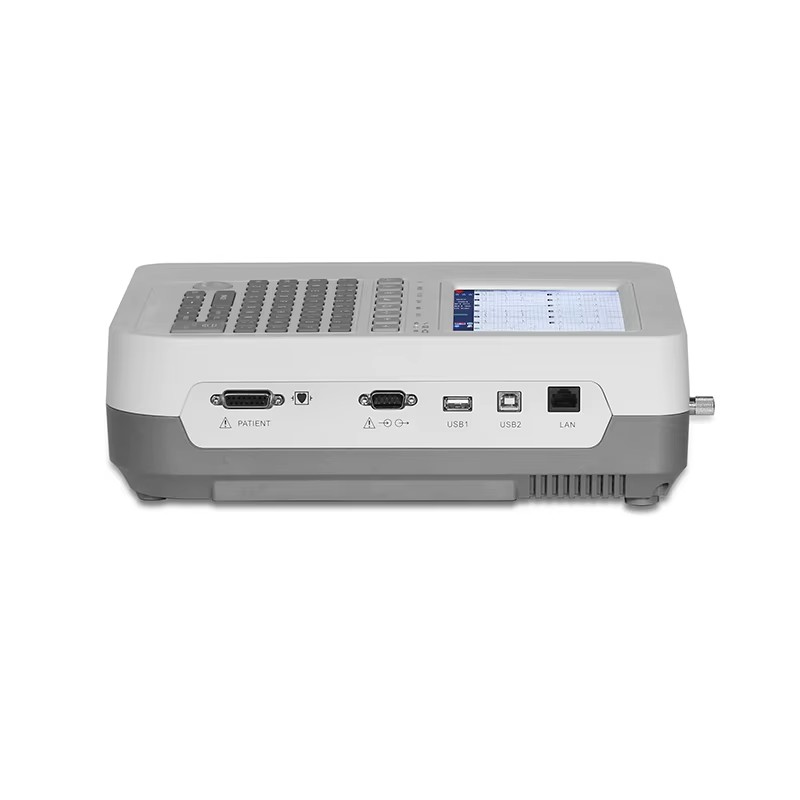

Interface	USB port, RS232 port
Recording modes	Automatic, manual and rhythmic
Wave Gain/Sensitivity	2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 10/5mm/mV, 20/10mm/mV
Safety standards	MDD93/42/EEC, EN ISO 14971,IEC60601-1 GB9706.1-2007,IEC60601-2-27 GB10793-2000, EN 60601-1-4, ANSI/AAMI EC-11, YY1139-2000, Class I, CF type
AC	100-240V(60Hz)
DC	14.8V, 2200mAh (Built-in battery)
