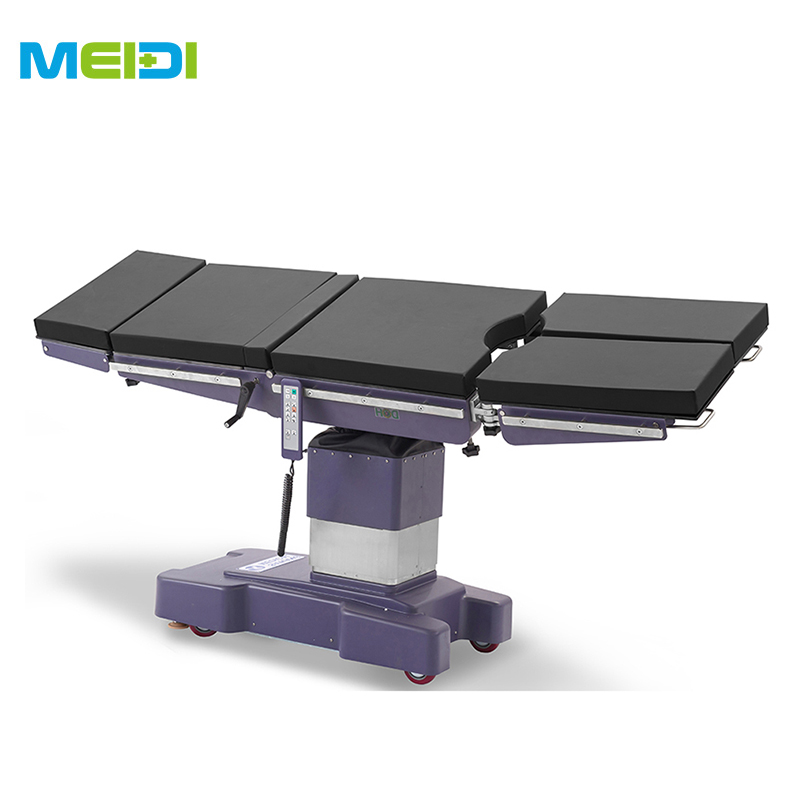

Comprehensive x-ray translucen electric hydraulic operating table

Products Description

How does a hydraulic lift table work?

【Product performance】

1. operating environment

1) operating temp ：5～40℃；

2) relative humidity : ：≤80%;

3) atmospheric pressure:  860 hpa～1060hpa

4) Power: 220~240V/50 or 60Hz

5) Input Power: 450VA

6)Net weight of table:210kg

7)Payload weight:200kg

What is the function of the Operating Table?

2. Performanc parameters :

Table Length: 2130mm Width: 520mm

Table Height: Minimum height: 650±10mm(not include mattress), Height Lifting:300mm

How to prepare an operation table?

3.Characteristics ：

1. Full body stainless steel, using remote controller control operating table position active, controller will automatic off if 60secs never use, and with prevent misoperation lock switch.

2. Imported Hydraulic System with low noise, safety and stable

3. The table is adopted with transmission X-ray materials

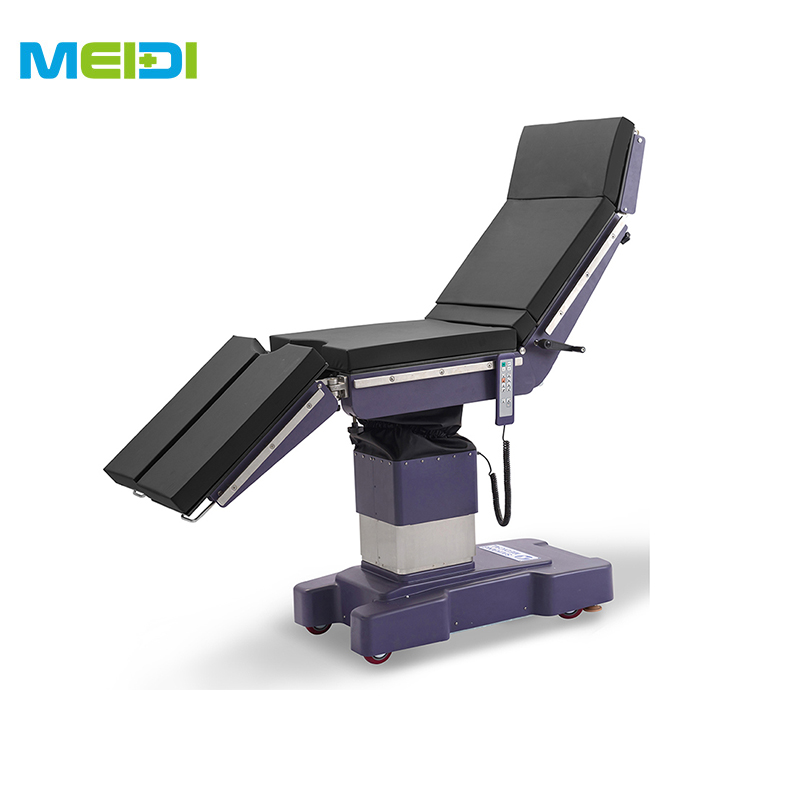

4. Four section include Head, Back, Seat and Leg, all section applicable for x ray use and except head section, the rest section with X ray cassette layer under each section

5. Kidney bridge include, to provide excellent operation posture of human body engineering

6. Standard electric hydraulic brake system for optimum stability

7. Standard accessories to adapt different surgery use
