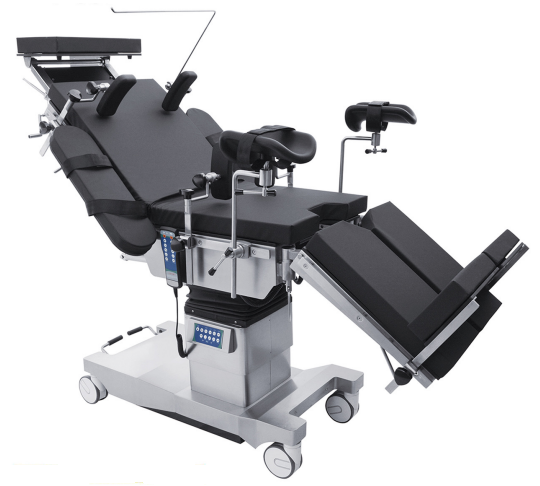

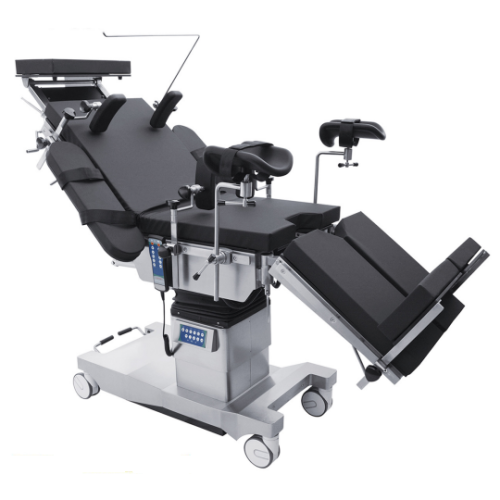

Medical electric operating table

1,The product is suitable for surgery, gynecology, urology, otolaryngology, and orthopedics.

2,The table frame, side rail, base cover and column cover are all made of SUS304 stainless steel.

3,The table is divided into four sections: head ,back (including waist bridge), hip and leg section; The tabletop is made of high-strength composite material with X-ray transmission; It can be cooperated with a C-arm to take photos.

4,The table lifting, backward and forward tilt, left and right tilt, folding up and down of the back plate, and translation are all controlled by the electric push rod.

5,The product has double control systems : hand-held l  controller and column fixed controller, when one fails, the  other can be enabled .

6,The head board adopts double-joint structure, and it can be adjusted to make the head board and table surface horizontally parallel.

7,The leg plate is folded up and down with gas spring control.

8,The handle shakes make the built-in waist bridge lift up and down.

9, German TENTE central control silent casters.

10,The mattress is made of high-grade memory sponge pad, with a thickness of ≥6cm, which is antibacterial, easy to clean and corrosion-resistant; It has antistatic and decompressive effects, it can also prevent the patient from having bedsores during long time surgery..

11,When the battery is fully charged, it can be operated continuously and uninterruptedly in the state of no AC power supply, and the adjustment time of the surgical position is not less than 80 minutes

12,The static load of the whole machine is 297kg.

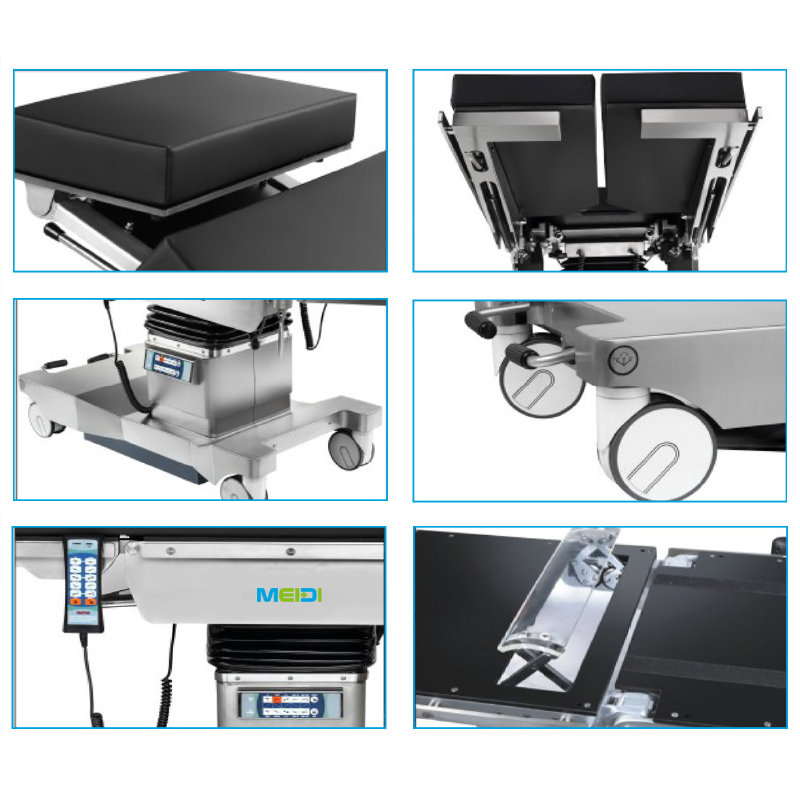

Function diagram
