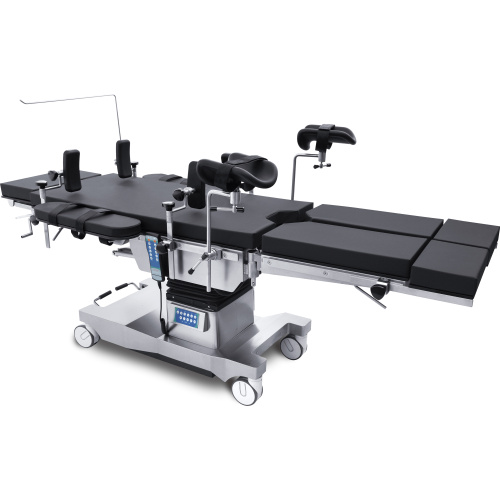

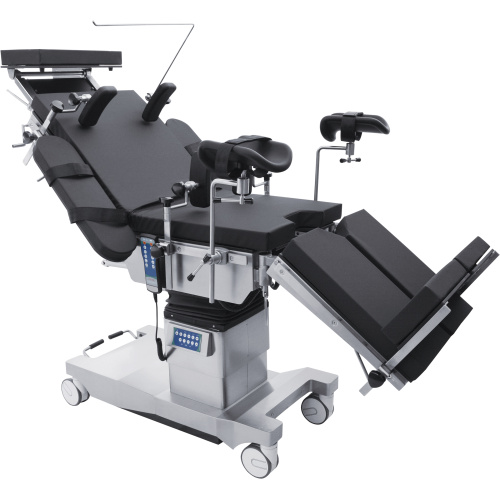

Adjustable Electric Hydraulic Operating Table

$3500
≥1 Kilogram

Contact Now

Model No.: Electric Hydraulic Operating Table

Dimension: 2100*550mm

Elevation(up/down): 710~1010mm

ReverseTrendelenburg: ≥25°

Trendelenburg: ≥25°

Description

Product Description

Product description

Parameter Standard accessories

Dimension	2100*550mm	Anaesthesia screen frame	1 piece
Elevation(up/down)	710~1010mm	Kidney bridge handle	1 piece
ReverseTrendelenburg	≥25°	Shoulder support	1 pair
Trendelenburg	≥25°	Leg support	1 pair
Lateral Tilt (Left And Right)	≥15°	Foot support	1 pair
Head plate Up	≥40°	Fixing clamp	8 pieces
Head plate Down	≥90°	Body support	1 pair
Head plate Flexible	≥40°	Arm support	1 pair
Back plate Up	≥80°	Long fixing clamp	1 pair
Back plate Down	≥20°	Hand remote	1 piece
Leg plate Back plate Up	≥15°	Mattress	1 set
Leg plate Down	≥90°	Power Line	1 piece
Leg plate Outward	≥90°
Kidney Bridge Up	110mm
Horizontal sliding	≥350mm

What is the definition of an electric Operating Table?

Electric operating table is a Medical Device used for patients during surgical operations, and its position and posture can be controlled by electric devices. It mainly uses the motor drive system to realize the movement of various parts of the operation. After receiving the control signal, the motor drives the table, backboard, leg board and other parts of the operating table to move through the transmission device (such as screw, gear, etc.), so as to achieve the functions of adjusting the height, tilt angle and side flip of the operating table.

Why choose our factory's factory electric hydraulic operating table?

1.Extreme weight load capacity of 250kgs with highest safety and stability.

2.Memory pad with antistatic ,waterproof design.

3.Standard override panel control makes the control safer.

4.Battery power for 50-80 operations.

5.The longitudinal shift of up to 350MM enables optimum access with the C-arm.

6.Leg plate: imported gas spring for easy controls.

7.lt can easily be moved to any desired position as four castors.

8.Two joint head plate.

9.Built-in kidney bridge.

10.Double control system.

Reliable safety protection mechanism. The design of the electric operating bed takes into account the prevention of accidental movement of the bed and the possibility of harm to the patient. For example, it has an emergency brake button. In case of emergencies (such as power failure, equipment failure, etc.), pressing the emergency brake button can immediately stop the movement of the bed. Moreover, the bed has good stability during movement and when stationary, and its support structure and the self-locking function of the motor can ensure the safety of the patient.

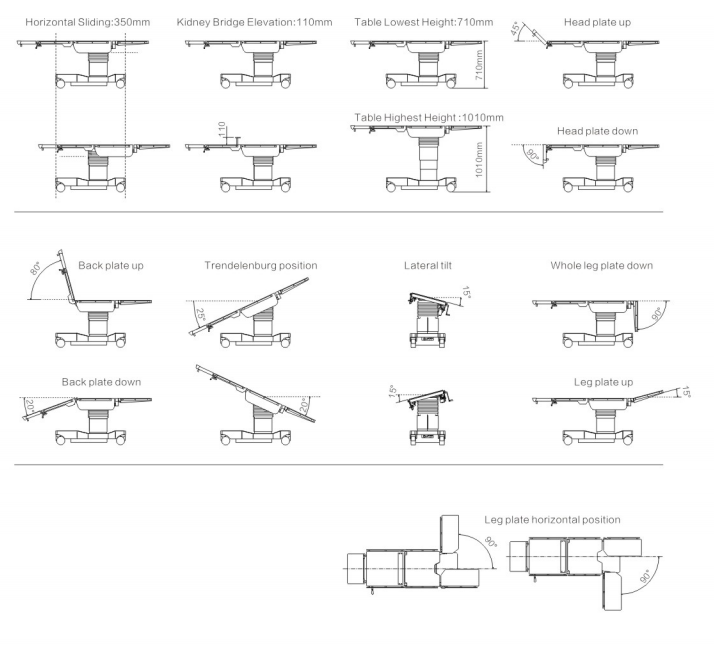

Function diagram
