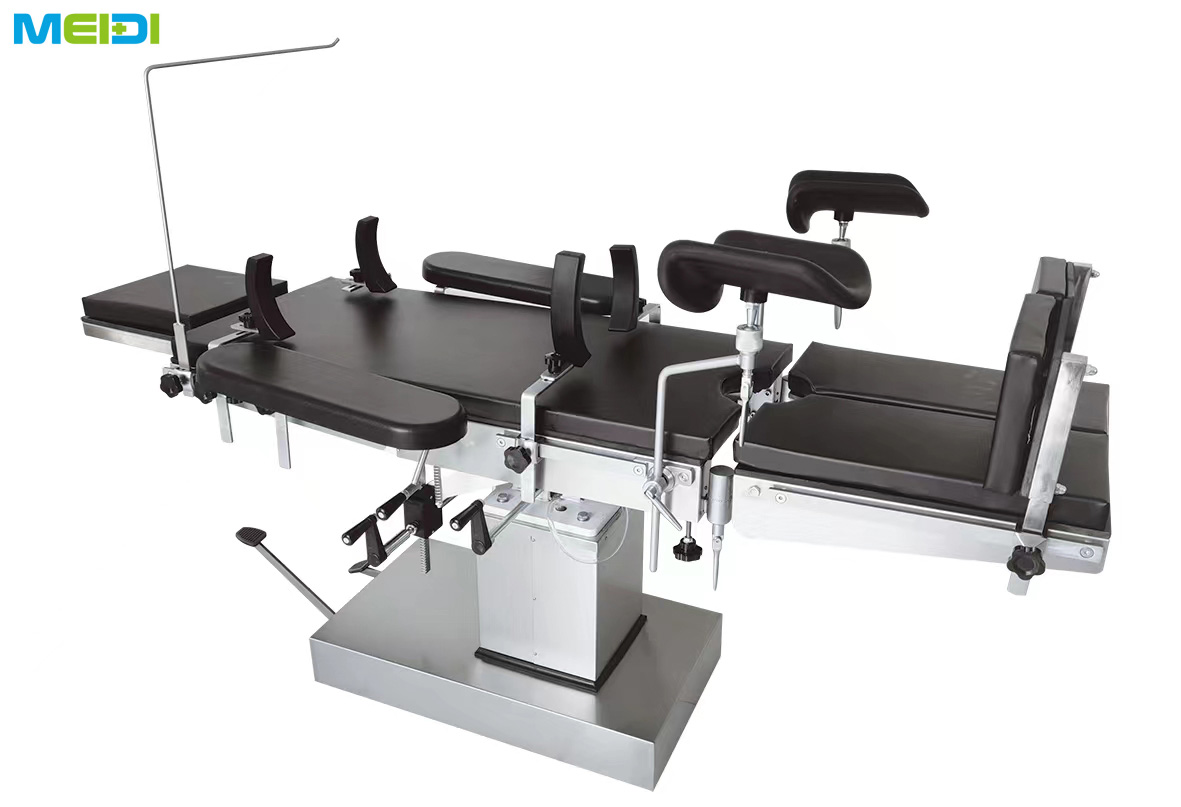

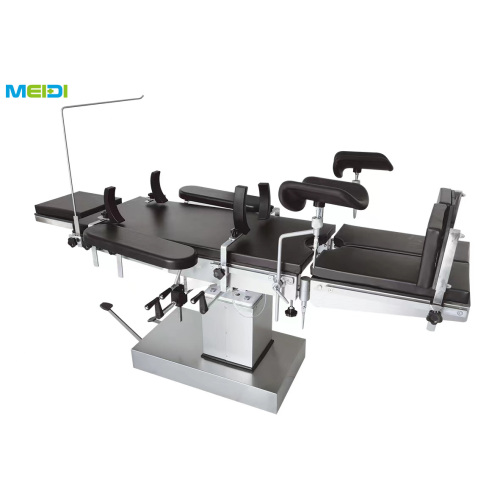

Mechanical Hydraulic Operating Table for hospital operating



  Parameter                                                                                           Standard accessories



Tabletop trendelenburg	Reverse Trendelenburg	≥25°		Anaesthesia screen	1 piece	Shoulder support (cushion)	2 piece
	Trendelenburg	≥20°		Body support(cushion )	2 piece	Leg support(cushion )	2 piece
Lateral Tilt (Left And Right)		≥18°		Long Fixing Clamp	2 piece	Fixing Clamp	9 piece
Head plate	Up	≥90°		Arm support(cushion )	2 piece	Mattress	1 piece
	Down	≥90°		Foot plate(cushion)	2 piece
Back plate	Up	≥65°
	Down	≥15°
Leg plate	Up	≥15°
	Down	≥90°
	Outward	≥90°
Kidney Bridge Elevation		≥1200mm
Horizontal Sliding Range		≥300mm

What are the advantages of Creble 200?

1.Creble 200 is widely used in chest, Abdominal surgery, ENT, gynaecology and obstetrics, urologyand orthopedics etc

2.Hydraulic lift by foot pedal, Position adjustments are needed on both sides of the Operating Table during surgery.

3.The use of hand-screw drive table longitudinal movement,can be used with C-arm supporting the use of X-ray checkupsand facilitate the film, the back and the legs folded plates are used servo-assisted gas spring.

4.The base and column cover allmade by premium 304 stainless steel.Good performance on anti-rust and easy to clean

Performance description

1. The products are suitable for various surgeries,such as head, neck, chest and abdomen, perineum and limbs, as well as obstetrics and gynecology, ophthalmology, otolaryngology, orthopedics etc.
2. The operating table is composed of head plate, back plate, waist plate, ahip plate, and split leg plate.
3. The table lifting is completed by repeatedly stepping on the foot pedal to drive the hydraulic oil pump.

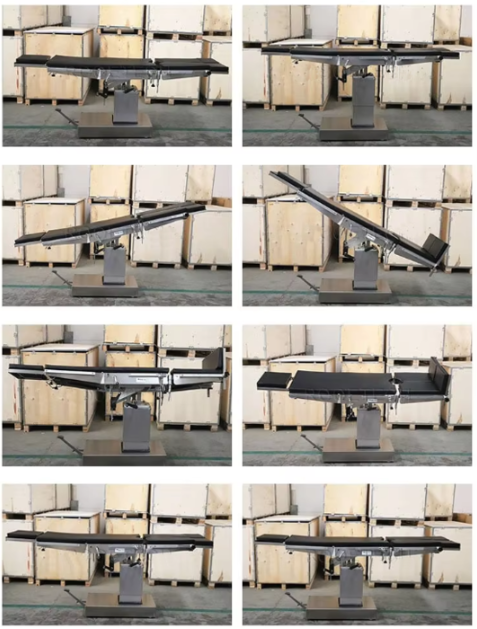

4. The folding up and down of backboard and legboard, forward and backward tilt, and the left and right tilt are all realized by the handshakes,worm gear and gear rack on both sides of the table, The head board is screw locked; The waist board is hand-cranked; The folding up and down of leg board is controlled by ratchet ; The waist board is hand-cranked.
5. The table surface can be moved to the direction of the head and feet by hand shake, which is convenient for X-ray film;
6. The shield of base and column are made of stainless steel

 What are the functions of the electric hydraulic operating table？
