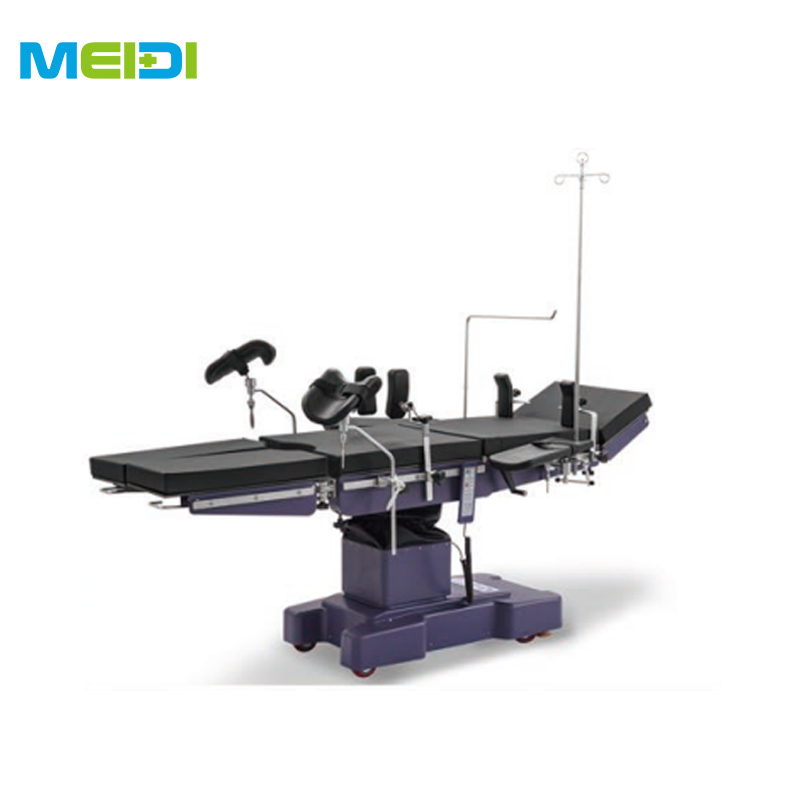

Medical Electric Hydraulic Operating Surgical Table

Get Latest Price

Contact Now

Model No.: MT-2000

Brand: Meidi

Product Name: Electric Operating Surgical Operating Table

Table Size: 2130mm*520mm*650±10mm

Height Lifting: 300mm

Tilt: Left Tilt≥20° Right Tilt≥20°

Forward/ Backward: Forward≥30° Backward≥30°

Head Section: Up≥30° Down≥90° Detachable

Back Section: Up≥75° Down≥15°

Kidney Bridge: 120mm

Input Power: 450VA

Net Weight Of Table: 210kg

Description

Product Description

1.【Application】

These electric hydraulic operating tables are suitable for chest, abdomen, brain surgery, ophthalmology, otolaryngology, gynecology and obstetrics and urology surgery. They are comprehensive operating room equipments.

2.【Principle of Operation】

This Operating Table is electric hydraulic system, the main structure is electric hydraulic pump, hydraulic cylinder, electromagnetic valve etc, When you press the desired action button, the hydraulic pump will work, at the same time, the corresponding action of the electromagnetic valve is opened, the oil pressure will rapidly from the pipeline into the hydraulic cylinder to drive the piston to work, to reach the corresponding movement, when the button is released, the action can be stopped at this position.

3.Anesthesia frame

First,set the double fix slide into the rail, then insert the anesthesia frame pole into the slide hole, lock fastening handle to the rail, move the double fix slide position on the rail, can accordingly adjust the position of the anesthesia frame, in addition, unscrew the fastening handle, can make the anesthesia frame move up and down and horizontal rotate.

4: Body Supporter

First set the single slider to the rail, then insert the body supporter pole into the slider hole, make sure the position of the body supporter on the table, screw the single slider to the rail, if adjust the position of the body supporter, unscrew the position handle, rotate the body supporter to the desired position, and then screw the position handle, the body supporter can fix on the desired position

5: Shoulder Supporter

Set the shoulder supporter into the rail, fix handle 1 to the desired position, if adjust the shoulder supporter horizontal position, just loosen handle 2, the shoulder supporter can adjust in any range, after desired position just tighten the handle 2.

6. Body belt

First the two body belt are respectively set into on both sides of the rail, and then one end of the two body belt respectively insert into the body belt long slot (note the two body belt on the nylon hasp direction), and the two body belt on the nylon hasp can live together.

7．Leg Supporter

Firstly set double fix slider into the rail, then make the leg supporter frame inserted into the slider hole, screw the handle 1 can be fixed. If need to change the position of leg support, unscrew the handle 2 ,the leg support can rotate in any direction, achieve the required position, screw the handle 2 can be done.

If need to move or rotate the whole leg support, unscrew the slide handle 1 and pull outside, after the slide two planar gear detachment, rotate the leg support to the required the position, merge the two planar gear and screw the slide handle 1, then can fix to this position.
